Quick Details

  • Condition: New
  • Type: Hot Press Machine
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Geelong
  • Model Number: GL-PH
  • Voltage: 380V/415V/440V
  • Power(W): 26kw
  • Dimension(L*W*H): 1370x3600x4300mm
  • Weight: 31000kgs
  • Certification: ISO9001-2000
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Normal pressure: 5000KN
  • Board inlet diretion: transverse
  • Layers: 15layers
  • Openning between two hot platens: 50-120mm
  • Unit pressure: 19-23kgs/cm2
  • Stroke: 1500mm
  • Platen area: 5x5ft, 4x8ft
  • Ascending speed: 10000-18000mm/min
  • Descending speed: 10000-18000mm/min
  • Brand: 15 Layers Plywood Hot Press Machine

Packaging & Delivery

Packaging Details nudle package
Delivery Time 20 days after deposit
Product Description

Product Application-15 Layers Plywood Hot Press Machine

Geelong is able to manufacture both hot and cold plywood presses with a wide range of openings, capacities and other specifications. Capacities are usually designed between 500 and 800tons however this can be adjusted according to customer requirements. Furthermore we can also customize stroke size, pressures and the distance between platens so be sure to contact us for more details.

specification 15 Layers Plywood Hot Press Machine
Nominal pressure
500T
Power of motor
15KW X2pcs
Direction of boards in
transverse
Flow of high pressure pump
25X1pcs
Layers
15
Allowed pressure
25MPA
Openning
70mm
Power of motor
7.5KW X 1pcs
Quantity of hot platens
 16pcs
Dimension
3700×1370×5110MM
Size of hot platen
1370X2700X52MM
Controlling methods
automatic hydraulic station
Quantity of cylinders
2pcs
Thickness of up and down column
800mm
Diameter of main cylinders
360MM
Main steel plate thickness
35MM(Q235)
Stroke of cylinders:
1050MM
Total weight of this machine
approx.43000KGS.
Allowed pressure
≤25MPA
Working voltage
380Volts, 50HZ, 3 phrases.
cold press machine
10Seconds
Heating medium
steam or thermal oil
Flow of low pressure pump
360X2pcs
Steam pressure available
16.2kgs/cm2
Allowed pressure
≤3MPA
Hot platen thickness
42mm(Q235)


Main advantage

1) detachable frame,it is convenient in installtion and loading
2) hot platen is made by the carbon solid steel,high precision, high strength and durable
3)  PLC control system,Micro-computer, manually/ automatic controlled
4) WUXI BRAND cylinder,durable and good quality
5) It can be heated by steam boiler, oil heater or electric oil heater.

machine details

Detachable frame

the main frame use the bolts for combination.
it is easy to load and install.the detachable frame design will save delivery cost and installation cost.and Avoid frame cracking because of welding.so it is more stable and durable.

Hot platen

our factory can produce the hot platen by our self.

so we can guarantee the hot platen quality and cut down the cost.it is drilled from solid steel Q235/Q345.It has high precision, high strength and durable.

WUXI cylinder.

we only use WUXI brand cylinder.this brand solid is famous in china.Owing to the cylindrical surface of piston and jar hole, radial piston pump can be assembled accurately. Compared to others, this kind of cylinder is better against impact, moreover, it has longer life, higher cubage efficiency and higher control precision.

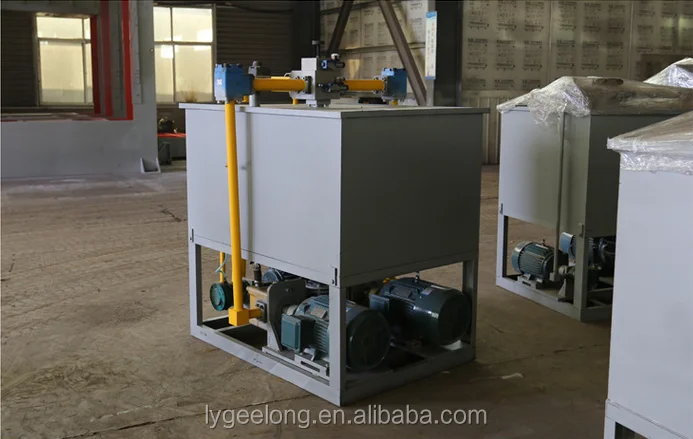

hydraulic  system.

we adopt advanced TAIWAN  hydraulic technology.

Our hydraulic system can provide stable pressure.and two Aviation pump can guarantee enough pressure and work well.



Our Service

Pre-Sales Service

* Inquiry and consulting support.

* welcome visit our factory and check our machine working.

* Design drawings service

* test machine quality before loading

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* clients also can arrange the engineer to our factory to learn how to install and operate the machine

* Permanent after-sales service.the warranty is 2 years.but the after-service will be continuous.

Packing & Delivery
Packaging  15 Layers Plywood Hot Press Machine
Size
40HQ
Weight
28T



Packaging Details
the frame is in nude,but the sapre parts will be put into wood case during the loading

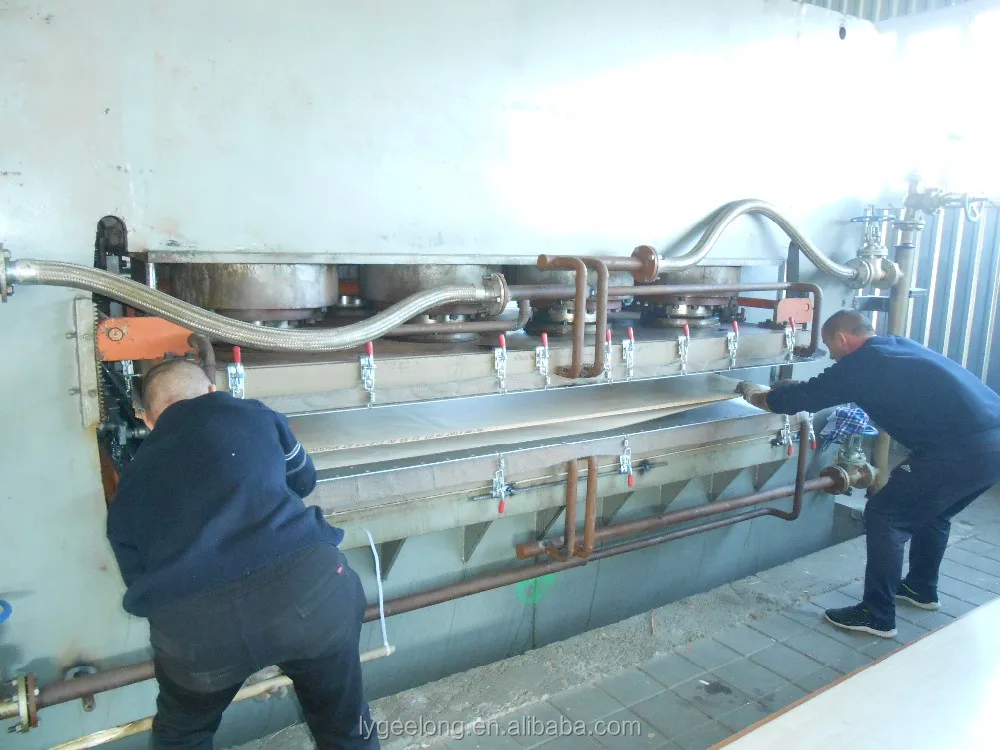

Testing Service

Testing service.

we have professional testing team.after the machine finishing and before the machine loading,we will arrange the engineer to test the machine and check its quality.only the machine has any problem,we will arrange workshop to correct until meet client's requirement and guarantee machine qualified!
