Quick Details

  • Condition: New
  • Type: plywood production line
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: GEELONG
  • Model Number: Plywood Manufacturing Machinery
  • Voltage: 380V/415V
  • Power(W): 22KW
  • Dimension(L*W*H): Accoding
  • Weight: 100T
  • Certification: CE ISO9001
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • plywood veneer composer: 1220*2440mm Plywood Production Line
  • type: plywood machinery for sale
  • capacity: design the production line according to client's requirement
  • log debarker: 4feet,8 feet ,10 feet
  • power: standard
  • veneer dryer machine: 15 layers or design for clients
  • veneer peeling machine: 4feet,8 feet ,10 feet
  • glue spreader: double
  • plywood cold press machine: 400T 15 layers or design for clients
  • plywood hot press machine: 500T 15 layers or design it for clients

Packaging & Delivery

Packaging Details Seaworthy packing
Delivery Time Shipped in 90 days after payment
Product Description

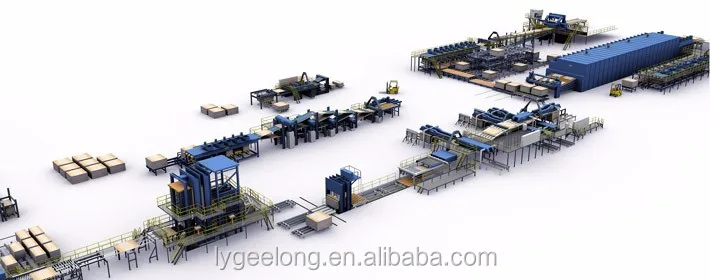

1220*2440mm Plywood Production Line

In the plywood machinery line  , log cutting, peeling, dry, handling, hot press, edge trimming, sanding affect the wastage. The wastage is remains of processing (materiality) and shrinking (immateriality). Wood wastage is related to the material, specification of log, equipment capability, technology and production specification.

plywood machinery for sale  production line

1220*2440mm Plywood Production Line

Log Cutting

Usually import log length is more than 6 meters. Cutting according to the technology required length and quality. The cutting length should be product length add remains. For example, product is 1220mm*2440mm, cutting length usually be 2600mm or 1300mm. log length, camber and demerit affect plywood output directly. Remains are small wood pieces, truncations, sawdust, tec. Log cutting wastage ratio is 3%-10%.

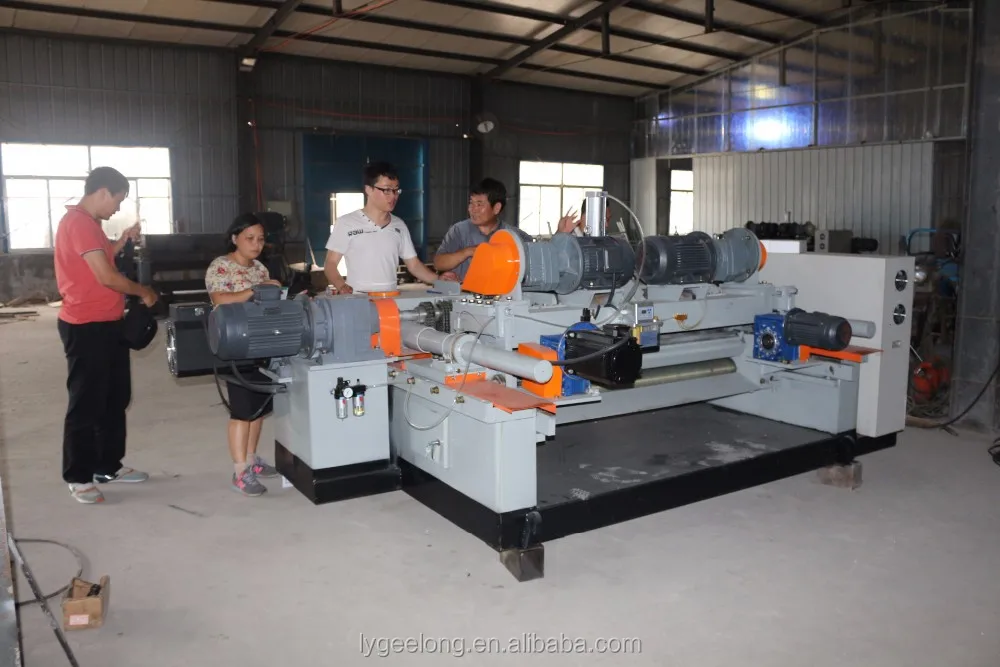

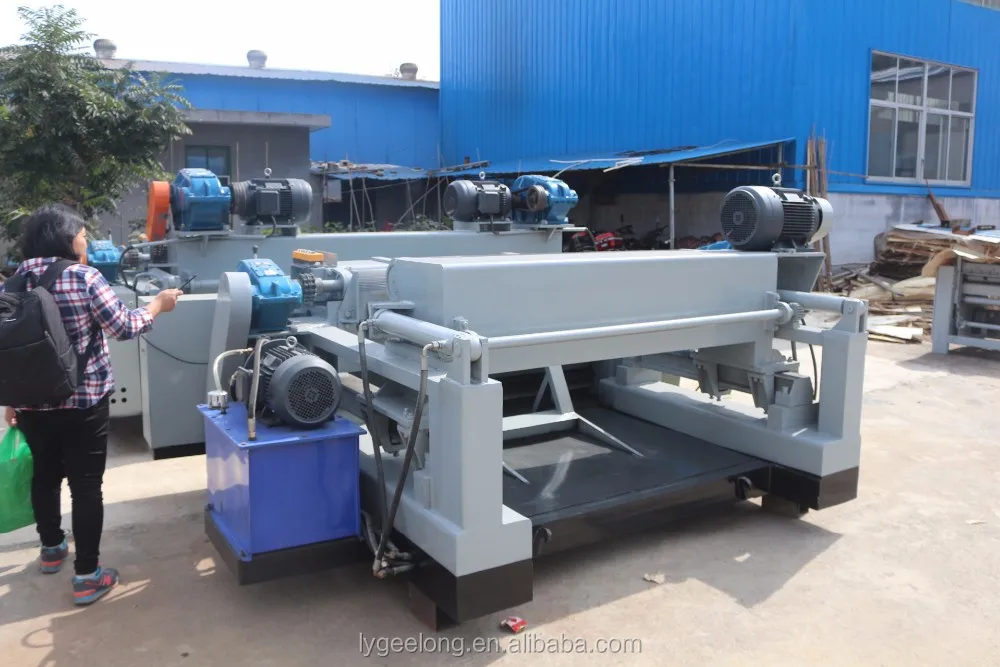

Veneer Peeling

Peeling is the most popular plywood producing process. Back veneer thickness is about 0.6mm, core veneer and centre veneer thickness is about 1.8mm.

 Cutting Size (DxL)
diameter 500*1400mm
Min Residual Diameter
diameter 28mm
Max Stroke of Tool Slide
500mm
Cutting Thickness
0.5-3.6mm
Cutting Speed
50meters/min
Power
21.5kw
Max.length
1400mm
Max.diameter
500mm
speed
50m/min
Rate of peeling
>98%
Rate of wood lose
<2%
Power
22.5kw

Drying

Veneer is moist. it should be dried according to the technology requirement. After drying, it will shrink. Dimension will become smaller. Veneer length, width, thickness will shrink. Shrink wastage is related to wood material, moisture containing, veneer thickness. Shrink wastage is 4%-10%.


1, it is used to dry and flat the core veneer.
2,it can be thermal oil heating, it has good quality cylinder, metal flexible pipe, seamless pipe hot platen, also solid drilled and grooved hot platen can be optioned.
3, good design, stable work, simplicity of operation, short dry time, high efficiency, veneer board is flat.
4,we can add and fix the synchronous closing device on the dry machine.

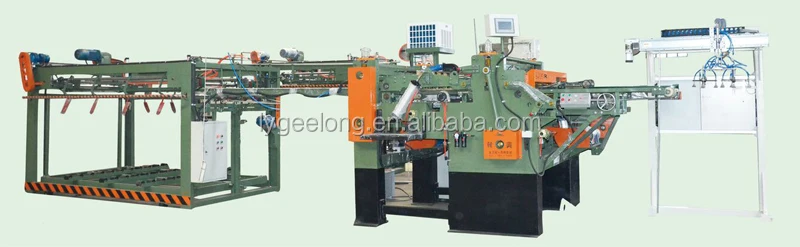

Veneer handling:

Handling include cutting, putting veneer together and mending. Cut zonal veneer into specification veneer or proper size which can be put together. Narrow zonal veneer can be put together into one veneer. Veneer with demerit can be mended to be qualified. Wastage in this part related to log material, peeled veneer quality, dried quality, and worker operation skill. Wastage ratio is 4%-16%. Import veneer processing plywood wastage ratio is 2%-11%.

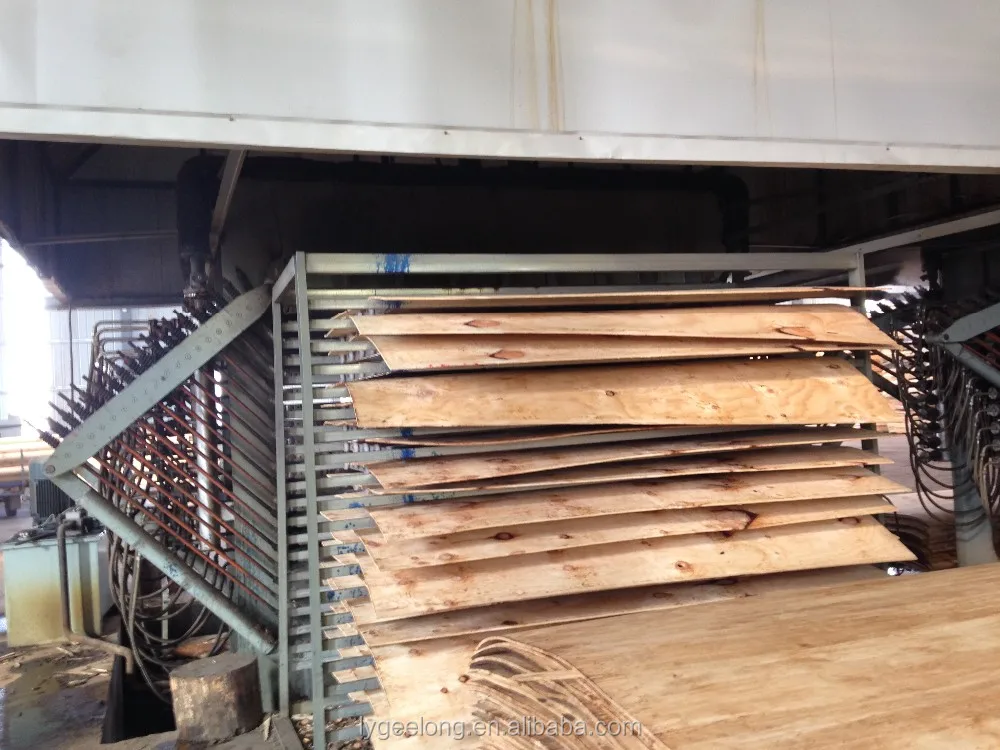

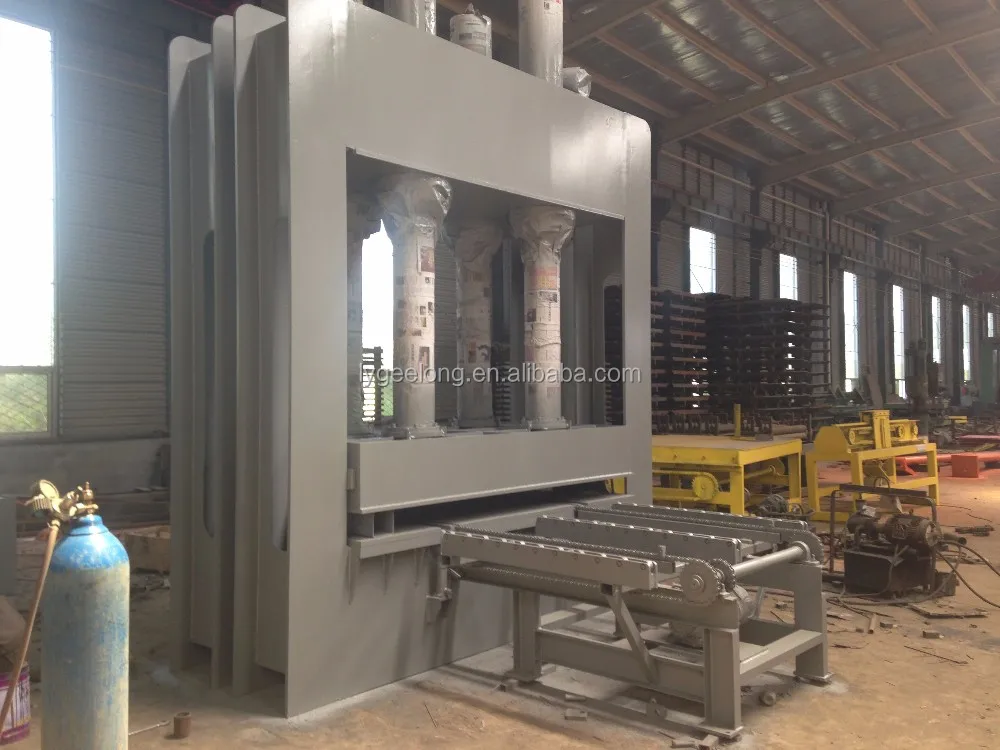

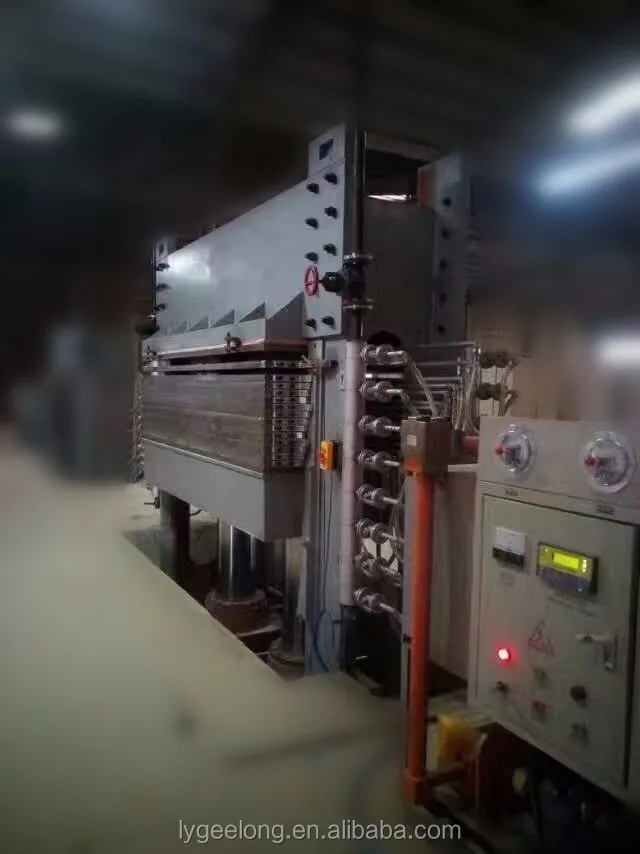

Cold / Hot press machine.

Veneer be glued and stacked, then glue together under set temperature and pressure by hot press. As veneer temperature and moisture containing changes, veneer will shrink. Shrink wastage is related to temperature, pressure, hot press time, wood material, moisture containing, wastage ratio is 3%-8%

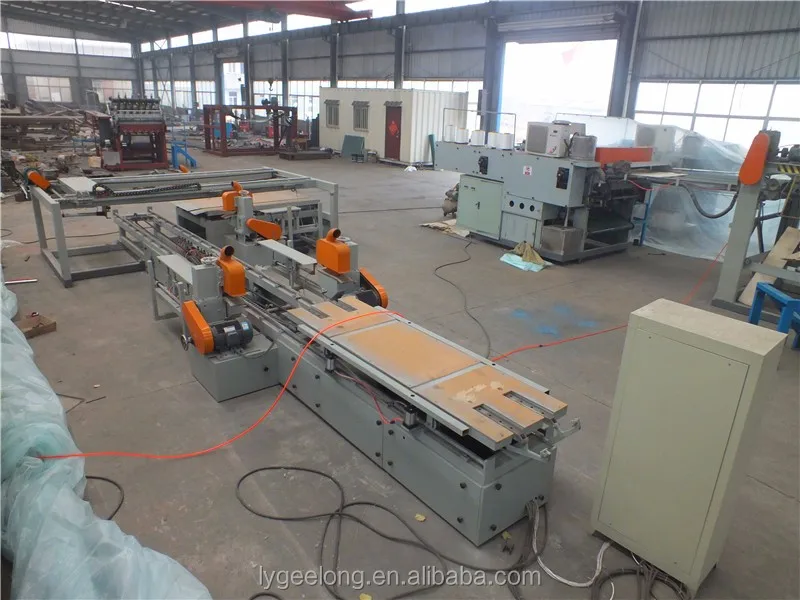

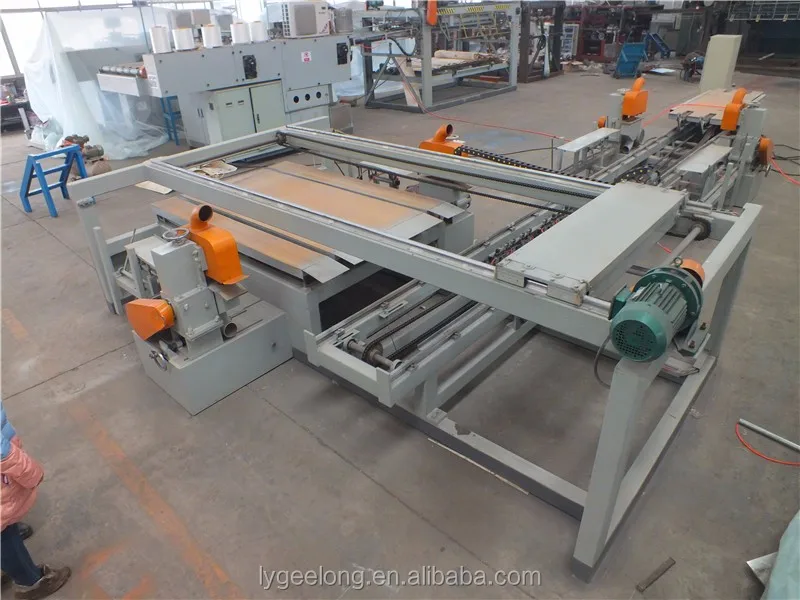

Edge trimming:

Trimming the edge of the plywood flank from hot press to qualified plywood board. Remains related to process remains and product dimension. Production is bigger, wastage is smaller. Wastage ratio is 6%-9%

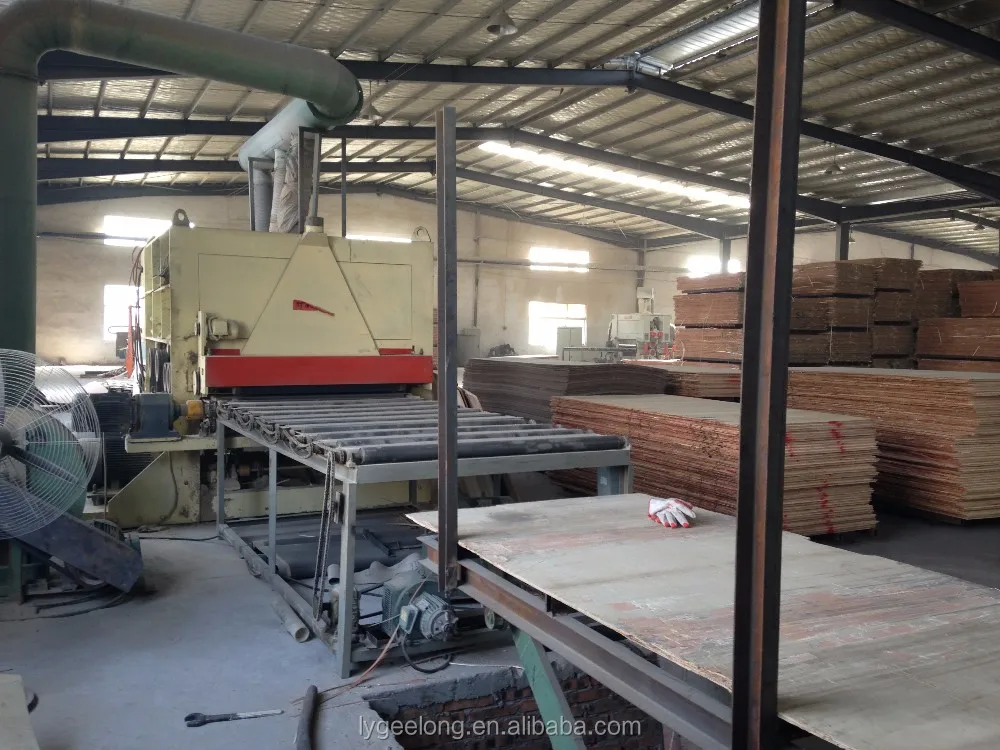

Sanding:

Sanding plywood surface to make it good. Wastage is powder. Veneer quality is good, sanding is less. Wastage ratio is 2%-6%

Warehousing:

1220*2440mm Plywood Production Line is packing in palletize or in bulk
Certifications
My Company

Linyi Geelong Machinery Co., Ltd, founded in 1990, is a professional manufacturer which developed and manufactured all kinds of man-made machinery and equipment.Our main products are Fully automatic particle board production line, full automatic core veneer composer machine, short cycle lamination hot press machine, fully automatic MDF production line, fully automatic OSB production line, plywood boards making machines, wooden pallet hot press machine, door skin hot press machine and variety of new high-end hot press machines, cold press, dryer and saw machine...etc...full set wood-based panel production machinery and equipment.

Our Service

we welcome all the clinets from the world  to visit our 1220*2440mm Plywood Machine Line workshop.and we will arrange our professional engineer to insitall the line at client's place.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

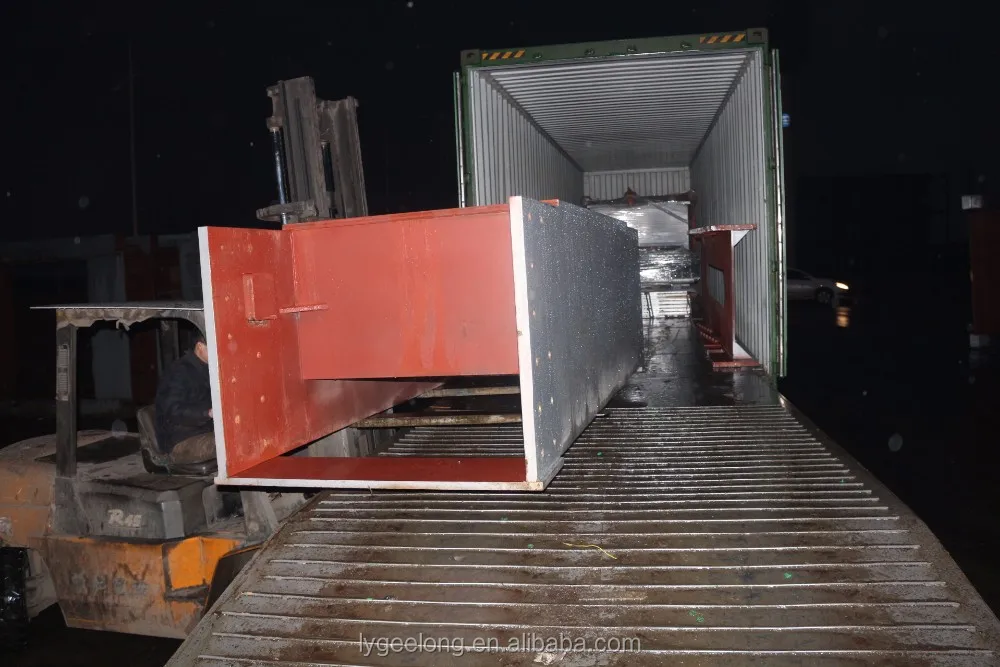

Packing & Delivery
this 1220*2440mm Plywood Machine Line need to be loaded by the container.
the Plywood Hot Press Process Line Single Sided Production Line has been exported to Brazil,Vietnam,Russia,Middle East and so on.we have rich expreience in it.
Packaging 1220*2440mm Plywood Machine Line
Size
40GP
Weight
100T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
