Quick Details

  • Condition: New
  • Type: Hot Press Machine
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: GEELONG
  • Model Number: GL-PBLINE
  • Voltage: 380V/415V/440V
  • Power(W): 1500kw
  • Dimension(L*W*H): 13000x2300x6000mm
  • Weight: 450T
  • Certification: ISO9001-2000
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: hot press for particle board
  • Application: osb board Production
  • Capacity: 15000-100000CBM
  • Color: Customer's Requirement
  • Raw material: Waste Wood, wood branch...etc
  • Cylinder: Made in Wuxi
  • Working time: 6HOURS
  • Feeding speed: ADJUSTABLE
  • Total power: 1500KW
  • Pressure: 12000KN

Packaging & Delivery

Packaging Details well packing for container
Delivery Time Shipped in 40 days after payment
Product Description
hot press for particle board Product Application

Particleboard (PB) based on wood as raw materials, shavings, glue, auxiliary equipment, hot pressed density 550-750kg / M 3 man-made sheet. It has a fine smooth surface structure of the core layer gradient, and has good heat insulation, sound insulation and good machining properties, is widely used in manufacturing furniture, high-end cabinets, speakers, and other interior construction and transport. We produce an annual output of 15000-100000 cubic meters of particle board equipment, in a dry, auxiliary equipment, hot press has done a great section in the technical modifications, reduce investment, improve the quality of the products

Main machine name
drum chipper machine
crusher machine
dryer machine
vibrating screen
glue blender machine
forming machine
prepress machine
belt conveyor for mat-boards
loader for mat-boards
hot press machine
unloader for finished board
overturning machine
edge saw machine
stacking machine
sanding line

hot press for particle board Main Features

1) All machines of this line is made from super quality steel plate, Q235A and Q345 steel plate.
2) All machines are controlled by the DELTA PLC(PLC BRAND YOU CAN SELECT)
3) Give you best solution according to your budget
4) Quick installation and maintence service after particle board line sales.

production process

1.Wood shavings preparation Section.

Short and long logs of small diameter are fed into long-log flaker by the feeding conveyor, which sliced into qualified shavings at once, then the flakes will be sent to wet flake bin. As for short branches and other materials, what will be sent to feeding belt conveyor of drum chipper. Raw material are whittled to qualified chips by chipper, then wind send these to wood bin as intermediate storage. Wood chips then pass the ring flakers to be qualified wood shavings, and will be sent to the wet flake bin by wind.

2.Drying and sieving section.

The flakes discharged from the wet flake bin are conveyed to the rotor dryer through screw conveyor. Qualified flakes are screened in screening machine. Screw conveyor of dryer is equipped with spark detection devices,once alarms, dry materials will be discharged outside the system automatically. Qualified core flakes are stored in core flake bin; oversize flakes will resent to mill to be re-crushed, and transported to surface flake bin.

3.Glue mixing and applying section.

This section includes the wax emulsion and hardener solvent’s preparation and transportation, additive storage and glue mixing and spreading system. After scaled, the core and surface flakes are to be effectively and uniformly mixed with qualified glue independently in their glue mixers respectively.

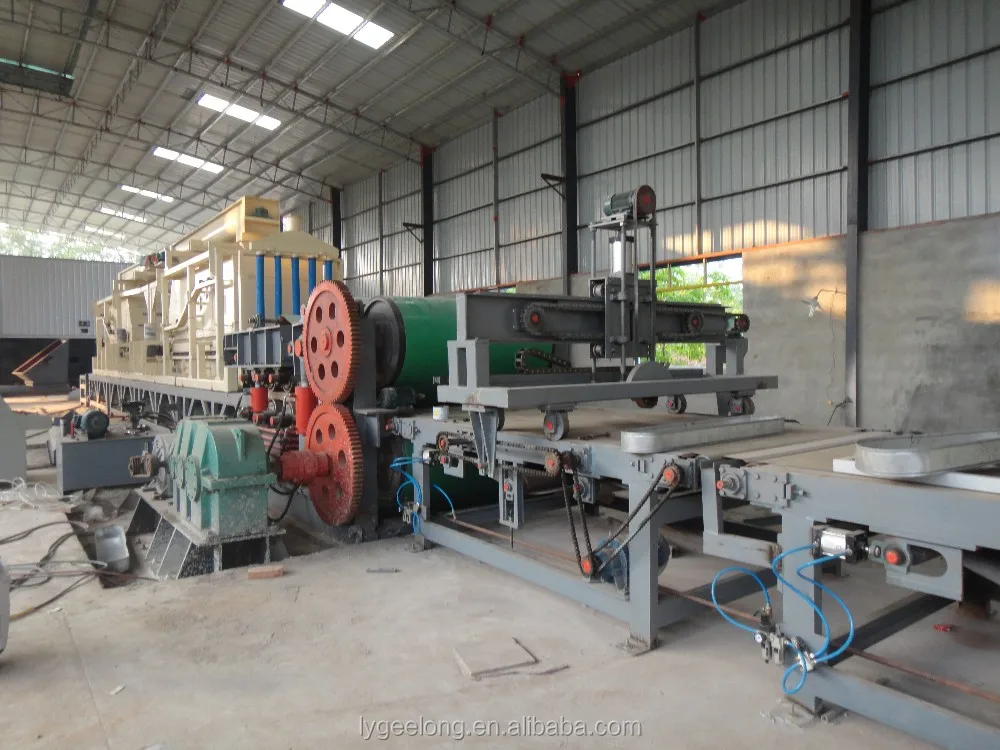

4. Forming and hot-pressing section.

The surface and core flakes are sent into classi-forming machine, and forming on the mat conveyor uniformly. After processes of mental remover, pre-press, lengthwise saw, cross saw, accelerate conveyor, scaling conveyor, storing conveyor and loading conveyor, mats are transported to carrier and then to hot press. Rough boards after pressing are pushed to unloader via pallet.

5. Cooling and sizing section.

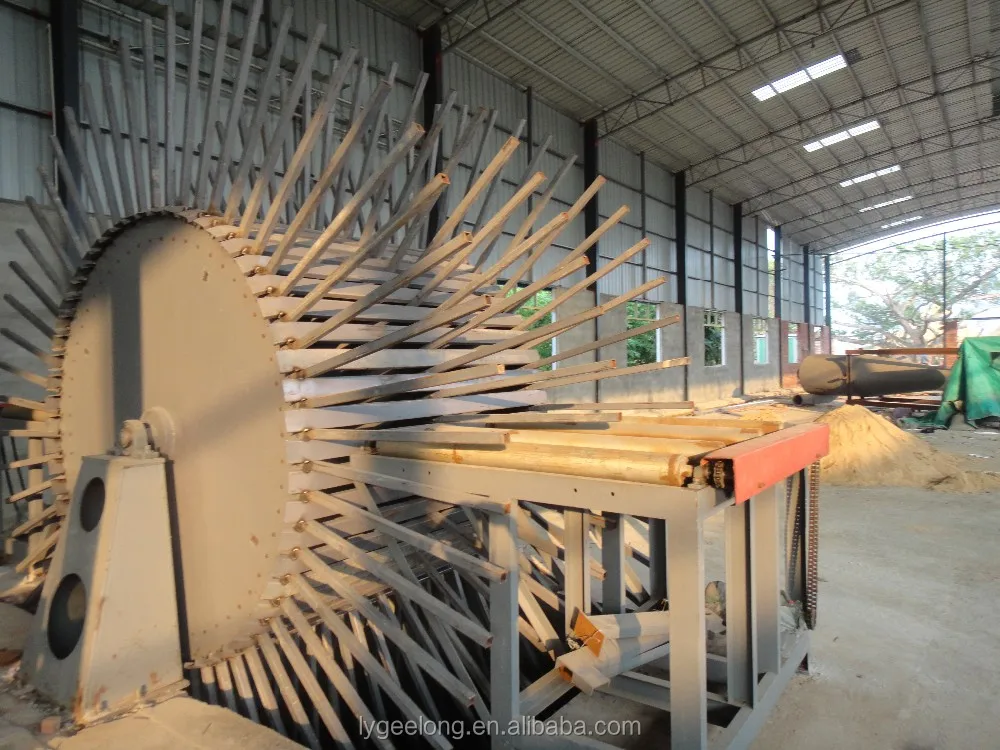

The rough board is conveyed to star-cooler for cooling, then the rough board goes through side trimming saw and become a qualified particle-board, stacked on the hydraulic lift.

6. Sanding section.

The storage board are sended into sanding system(include hydraulic lifters, roller conveyors, wide belt sander). Then sanded,checked and stored.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Quotation service.

* View our Factory.

* Helpping you purchasing other goods is available.

* Help you do the testing on goods, container loading

is also available in GEELONG COMPANY.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* How to make the glue making boards needs.

* Also can provide the production process of particle board

if you need.

Packing & Delivery
Packaging hot press for particle board
Size
115000 (L) * 2100(W) * 2300 (D)
Weight
5.6T



Packaging Details
The normal package is nude(Size: L*W*H), bec the machine part is very big. But we will do the package for small parts, and as for big part we will do the fastening work very well.
Packaging hot press for particle board
Size
3000 (L) * 2300 (W) * 2000 (D)
Weight
3.0T



Packaging Details
The normal package is nude(Size: L*W*H), bec the machine part is very big. But we will do the package for small parts, and as for big part we will do the fastening work very well.
