Plywood Pre Press Machine Cold Press Machines

FOB Reference Price:Get Latest Price
US $7,936-12,698 / Sets | 1 Set/Sets Plywood Pre Press Machine Cold Press Machines (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Cold Press Machine
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Geelong
Model Number:
GL-CP-4X8
Voltage:
380/415/440V
Power(W):
14kw
Dimension(L*W*H):
3500x1370x2750mm
Weight:
1100KGS
Certification:
ISO9001-2000
Warranty:
2 Years
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Plywood Pre Press Machine Cold Press Machines
Color:
Customer's Requirement
Working time:
22.5h/day
Usage:
pre press the mat-plywood veneers spreaded with glue
Pressure:
500T
Platen size:
13710x2700mm
Cylinder:
Made in Wuxi
Customization:
Avalable
Raw material:
Q235
Spare parts:
Supply any time
Supply Ability
Supply Ability:
20 Set/Sets per Month Plywood Pre Press Machine Cold Press Machines
Packaging & Delivery
Packaging Details
Well-packing for container shipmment
Port
Qingdao portt
Lead Time :
Shipped in 25 days after payment
Product Description



Product Application-Plywood Pre Press Machine Cold Press Machines

The Plywood Pre Press Machine Cold Press Machines is a necessary equipment in plywood machine. The machine is used to pre-press the glued veneer and to make it flat and stick together. The machine is suitable for pre-press process of making plywood, blockboard and decorative board.
Geelong's cold press machine specializes in woodworking process and is fit for making cold pressed cutter blade, grinding wheel and resin bond wheel which can be finished if heating plates are used. In additional to, the cold press can be applicable in density boards, shaving board, veneer boards, solid wood boards, wood glue and woodworking industry.

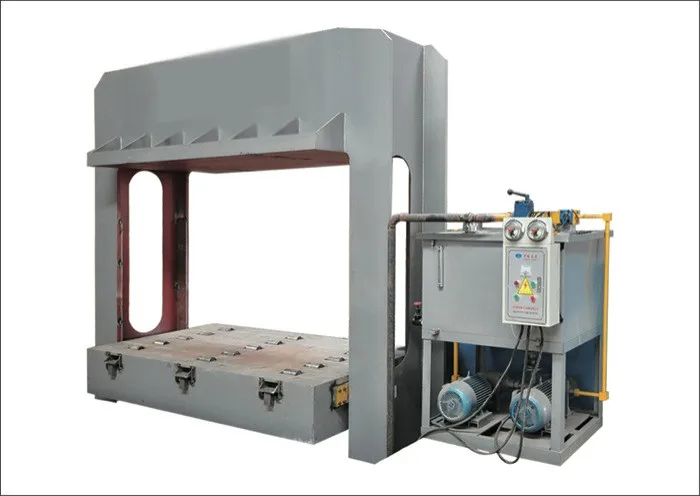

cold press-cylinder-down.jpg



Specifications of plywood cold press machine:



ModleGL4*8L-500
Total pressure500 T
Board feeding directionTransverse
Layers1
Layer spacing1800mm
Work plate size2700*1370mm
Cylinderø360mm*2pcs
Stroke 800mm
Compression resistance25 Mpa
Power11KW
Overall dimension3550mm*1370mm*4200mm
Weight10Tons
Working methodsFull automatic
Composite frameAssembled
Upper and bottom beam900mm
Thickness of the frame 30mm Q235
Middle beam400mm
Payment terms T/T 30%,Balance before leave factory
Delievry time In 20days
